Material: Medical non-toxic PVC
Usage: This product is used for clinical oxygen transfusion.
Specification and Size: Two sets of single nose, two sets of double nose, one set of single nose
Product scope of application:
It is matched with oxygen supply system for human body to inhale oxygen.
Product Advantages

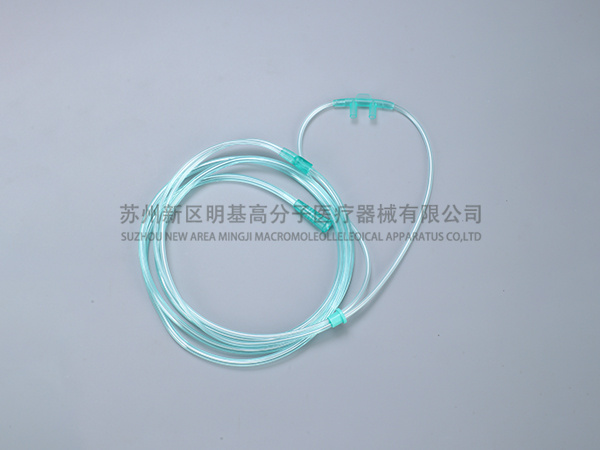

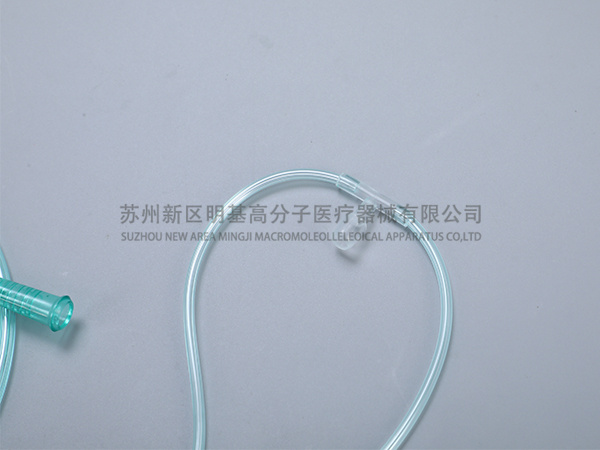

It is composed of a nose plug head, a connecting pipe and a joint. It has a traditional shape and a variety of combinations to meet different oxygen requirements.
The pipe is designed with internal threads, which can prevent pressure and folding to keep the oxygen delivery smoothly.
The nose is delicate, burr-free, soft and comfortable to wear.
Important technical parameters
The flow rate is not less than 15L/min at 0.05 MPa gas pressure.
Under the force below 15N, the cannula is continuously cracked and the joint should not be separated to cannula.
In the process of oxygen transfusion, the oxygen loss of nasal oxygen cannula is less than 5%.
货号 | 规格尺寸 | 材质 | 产品适用范围 Product application range |
MC01-04A | 双套单鼻 Double-set single-nose | 医用无毒高分子材料 Non-toxic，medical-grade PVC | 供临床输氧用 For clinical oxygen absorbed |
MC01-04B | 双套双鼻 Double-set double-nose | ||
MC01-04C | 单套单鼻 Single-set single-nose | ||
MC01-04D | 输氧管 Oxygen catheter | ||
MC01-04E | 双套双鼻（婴幼儿） Double-set double-nose (Infant) |
